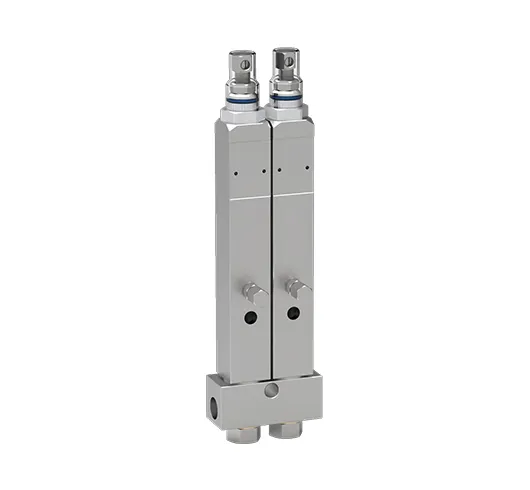

The series VL-1XL grease injector are for single-line, high-pressure centralized lubrication systems dispensing lubricants compatible with flouroelastomer packings and viscosity up to NLGI 2. Output is externally adjustable. An indicator pin permits visual check of metering device operation. Individual metering devices can be removed easily for inspection or replacement.
| TECHNICAL CHARACTERISTICS | |
| Product name | VL-1XL |
| Outlets | 1 to 6 |
| Metering quantity | 0.57 - 5.00 ml（adjustable) |
| Lubricant | grease NLGI 0, 1, 2 |
| Operating temperature | Max. 82℃ |
| Operating pressure | 128 to 414 bar |
| Material | Carbon steel or stainless steel |
| Connection main line | 3/8 NPT (F) |
| Connection outlet | 1/8 NPT (F) |
| Lubrication system | single line lubrication system |
| Part number | Connection outlet |
| 1XL000 | 1/8 NPT (F) |

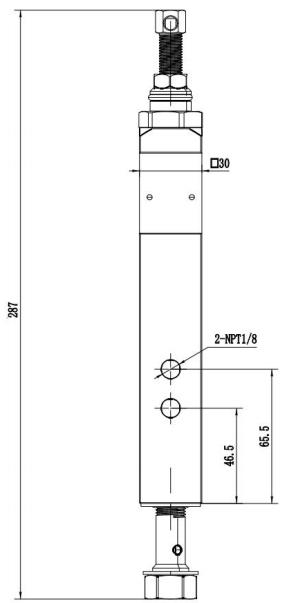

| Part number | Output Number | A/mm | B/mm |
| DBVL01 | 1 | - | 63 |
| DBVL02 | 2 | - | 76.4 |
| DBVL03 | 3 | 31.7 | 107.5 |
| DBVL04 | 4 | 63.4 | 139 |
| DBVL05 | 5 | 95.1 | 170.5 |
| DBVL06 | 6 | 126.8 | 202.7 |
Shipped with manifolds from 1 to 6 ports (lubrication points)
Output is externally adjustable
Each indicator pin permits visual check of injector operation
Each indicator pin permits visual check of injector operation
Individual metering devices can be removed easily for inspection or replacement
Cisolube offers custom grease distributor with wide selections, Contact now.
Construction machinery
Mining and mineral processing
Steel industry
