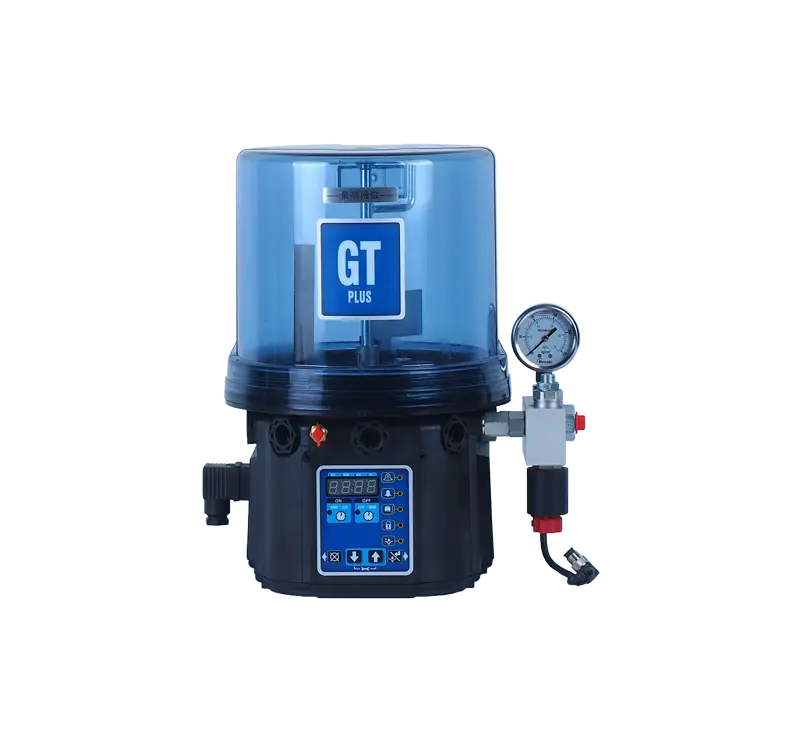

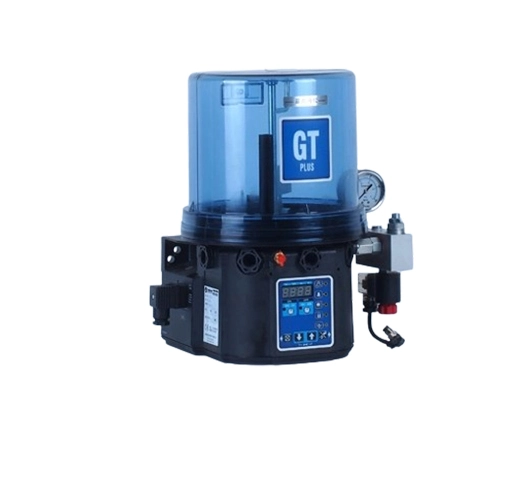

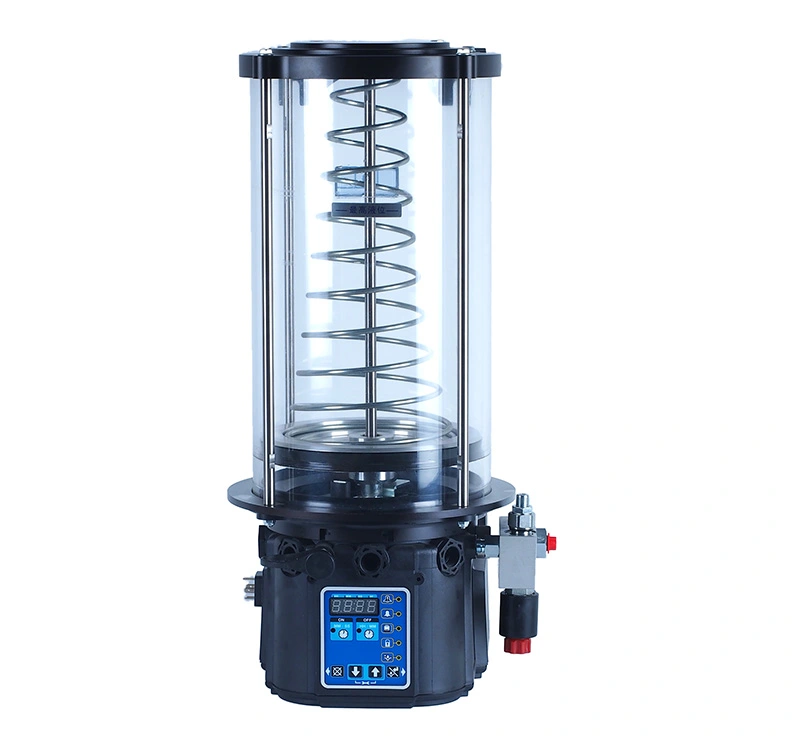

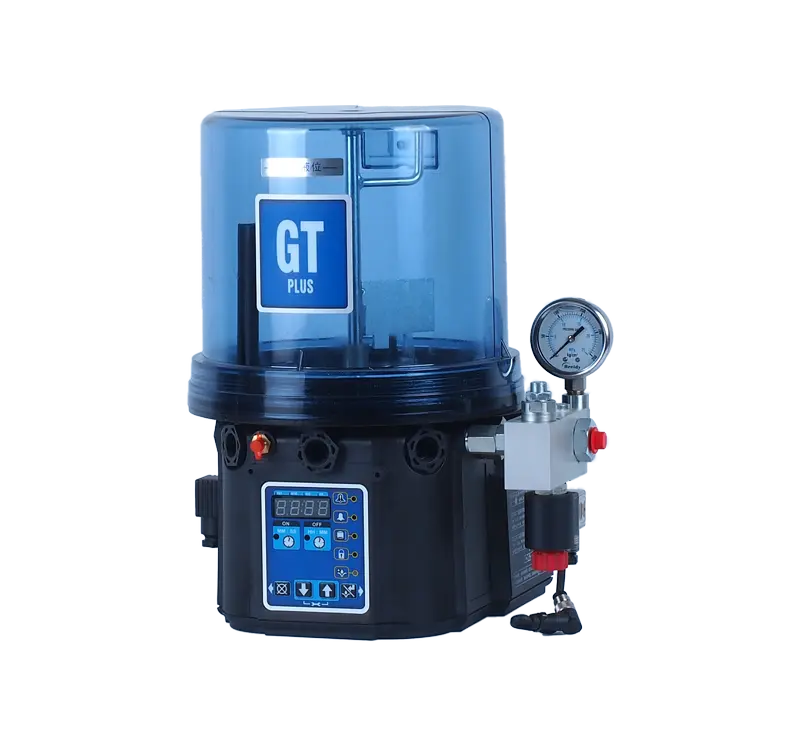

GTS Single Line Lubrication Pump

GTS pump is a piston pump predisposed to operate with a maximum of one pumping unit. Its design is particularly suitable for single-line systems.

There are two model modes:

Standard: can be managed by an external PLC. Since it does not come with an internal control unit, this is the most economic solution for lubricating your systems.

Automatic: With integrated control system, which can be set up local running time. Equipped with local operation and alarm light, alarm with buzzer, provide low level and pulse alarm, which can be combined with the monitor of distributor units into a perfect operating system.

Technical Information of GTS Single Line Lubrication Pump


TECHNICAL CHARACTERISTICS

Voltages

12VDC, 24VDC, 220V

Unit of pump outlets

1

Outlet thread

G1/4

output

max. 15 ml/min(one pump element)

Working pressure

adjustable from ±70 to 150bar

Reservoir Capacity

2L/4L/6L/8L

Lubricants

OIL, 000, 00, 0, 1

Operating temperatures

-40-90℃

Lubrication systemsingle line lubrication system

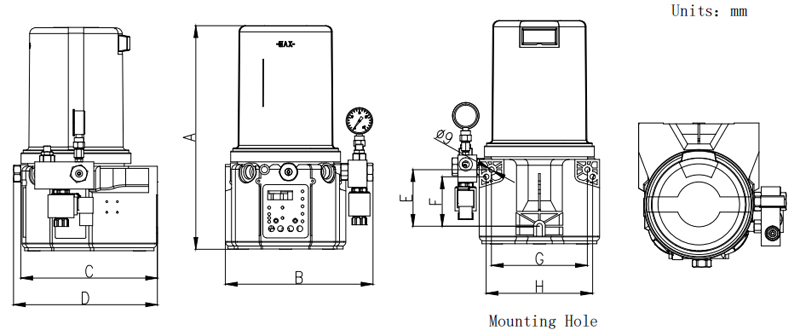

Technical Drawing of GTS Single Line Lubrication Pump

Technical Drawing of GTS Single Line Lubrication Pump


Reservoirs

A

B

C

D

E

F

G

H

2L

338

255

229.5

248

95.5

83.5

162.5

180

4L

378

255

229.5

248

95.5

83.5

162.5

180

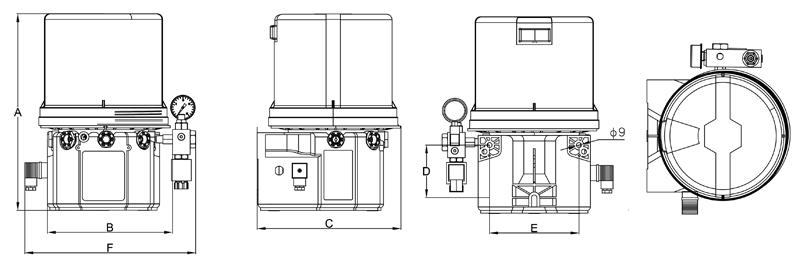

Dimensions of GTS Single Line Lubrication Pump


Reservoirs

A

B

C

D

E

F

6L

358

256

256.5

95.5

162.5

255


Characteristics of GTS Single Line Lubrication Pump


  • oil and grease

  • Reservoirs: 2L/4L/6L/8L

  • Voltages: 12VDC/24VDC/220V

  • Multiple grease filling ways

  • Powerful centralized control system

  • CE Certification

  • Design patent

  • IP65


Cisolube offer custom lubrication pumps with a wide selection, Contact now!
