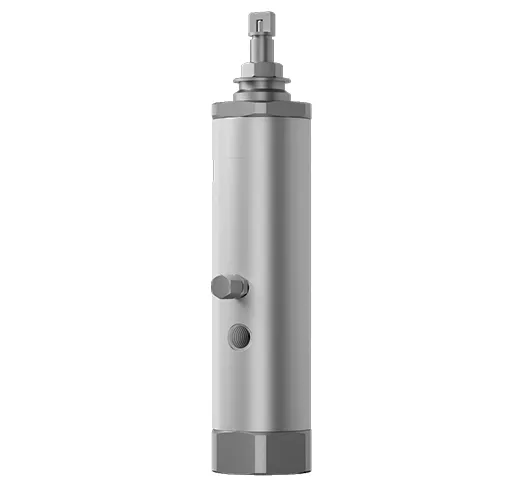

The series VL-11 metering devices are for single-line, high-pressure lubrication system s. viscosity up to NLGI 2. Output is externally adjustable. An indicator pin permits visu al check of metering device operation. Individual metering devices can be removed eas ily for inspection or replacement.
Technical characteristics | |
Outlets | 1 |
Metering quantity | 0.82 - 8.2 ml（adjustable） |
Lubricant | Grease NLGI 0, 1, 2 |
Operating temperature | -40 ~93 °C |
Operating pressure | 70 to 240 bar |
Material | stainless steel、Carbon steel |
Connection main line | 1/2 NPT (F) |
Connection outlet | 1/4 NPT (F) |
Part number | Connection outlet |
VL1100 | 1/4 NPT (F) |
May be combined in a circuit of metering devices VL-1、VL-1X、VL-1XL、VL- 11、VL-32
Output is externally adjustable
Each indicator pin permits visual check of injector operation
Individual metering devices can be removed easily for inspection or replacement
Cisolube offers custom grease distributor with wide selections, Contact now.
Construction machinery
Mining and mineral processing
Steel industry
