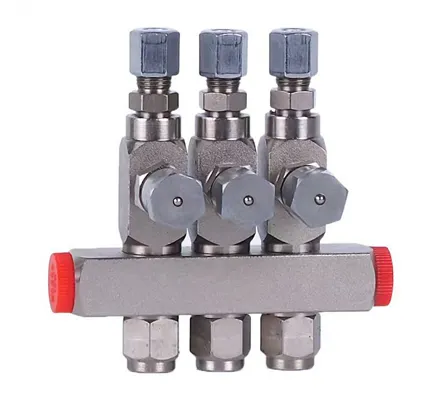

VL-1 Metering Valves

The  VL-1, VL-1X series metering devices are for single-line, high-pressure centralized lubrication systems dispensing lubricants compatible with flouroelastomer packings and viscosity up to NLGI 2. Output is externally adjustable. An indicator pin permits visual check of metering device operation. Individual metering devices can be removed easily for inspection or replacement.

Technical Information of VL-1 Metering Valves



TECHNICAL CHARACTERISTICS
Product nameVL-1
Outlets1 to 6
Metering quantity0.131 to 1.31 ml
Lubricantgrease NLGI 0, 1, 2
Operating temperature-26 to 176℃
Operating pressure128 to 241 bar
Materialcarbon steel
Connection main line3/8 NPT (F)
Connection outlet1/8 NPT (F)
Lubrication systemsingle line lubrication system

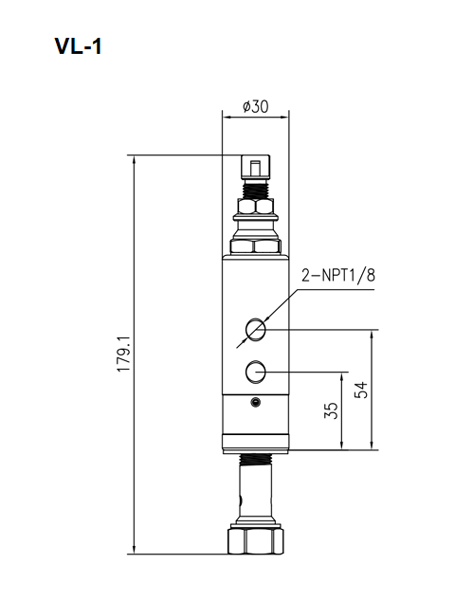

Technical Drawing of VL-1 Metering Valves

Technical Drawing of VL-1 Metering Valves



Part numberConnection outlet
VL10001/8 NPT (F)

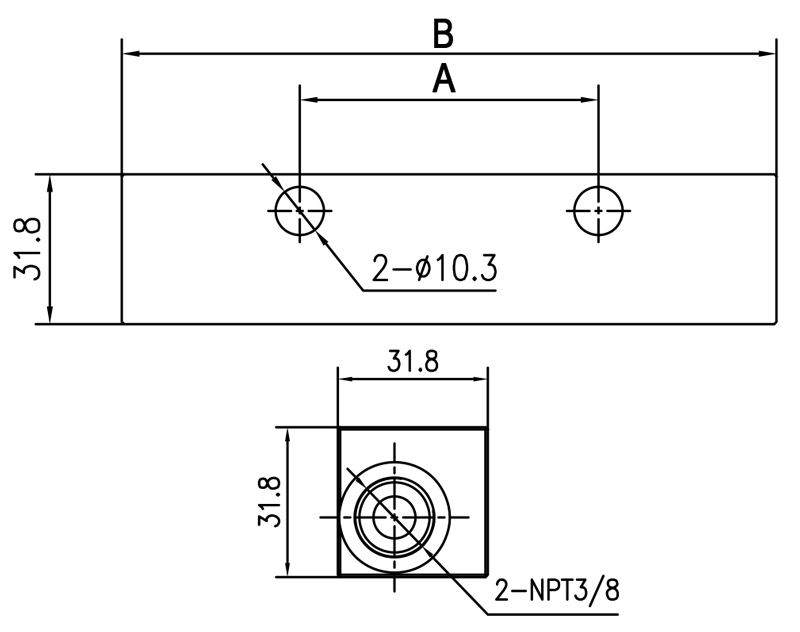

Technical Drawing of VL-1 Metering Valves


Part numberOutput NumberA/mmB/mm
DBVL011-63
DBVL022-76.4
DBVL03331.7107.5
DBVL04463.4139
DBVL05595.1170.5
DBVL066126.8202.7


Characteristics of VL-1 Metering Valves


  • Shipped with manifolds from 1 to 6 ports (lubrication points)

  • Output is externally adjustable

  • Each indicator pin permits visual check of injector operation

  • Individual metering devices can be removed easily for inspection or replacement

  • Includes fitting for feed lines via alternate outlet port
