Articulated dump trucks are widely used in mining, infrastructure construction, and large-scale earthmoving projects, performing exceptionally well in harsh conditions thanks to their superior off-road capabilities and high loading capacity.
However, these machines typically operate continuously for extended periods under heavy loads, intense vibrations, dust, and complex terrain, placing extremely high demands on the lubrication of critical moving parts. Insufficient lubrication can lead to excessive wear on pins, bushings, and bearings, reducing equipment reliability and increasing maintenance costs.
Installing an automated lubrication system ensures continuous and precise lubrication of critical components, reducing downtime and extending equipment lifespan.
This article introduces 17 critical lubrication points on articulated dump trucks and provides a complete centralized lubrication system solution based on the CISOLUBE GT or GP203 electric lubrication pump + DSP/DSPP progressive distributor.
Articulated dump trucks have numerous high-load articulation points, bearings, and connecting pins, requiring continuous lubrication during operation.
Traditional manual grease application typically encounters the following problems:
1. Widely distributed lubrication points, resulting in low maintenance efficiency.
2. Some lubrication points are hidden and easily missed.
3. Unstable lubrication cycles, accelerating component wear.
4. Excessive grease consumption, leading to waste. Automatic centralized lubrication systems, through timed, quantitative, and uniform grease supply, ensure stable lubrication at every lubrication point, thus completely solving the above problems.
A typical articulated dump truck usually requires lubrication at approximately 17 key lubrication points.
These lubrication points are mainly distributed in the following systems:
1. Steering System
Left steering cylinder pin
Right steering cylinder pin
These components directly affect the vehicle's steering agility and handling stability.
2. Central Articulation Structure
Central Articulation Pin
This component connects the front and rear frames of the vehicle and is the core structure for articulated steering, while also bearing significant mechanical loads.
3. Suspension Swing System
Traction Rod Swing Bushing
This mechanism absorbs shocks and vibrations generated during vehicle operation.
4. Cargo Box Lifting System
Lifting Cylinder Base Pin
Lifting Cylinder Rod End Pin
Good lubrication ensures smooth and reliable operation of the lifting mechanism.
5. Cargo Box Hinge Structure
Cargo Box Hinge Pin
Tailgate Hinge Pin
These components move frequently during loading and unloading operations, therefore requiring continuous lubrication.
6. Other Structural Connection Points
Depending on the vehicle model, the following lubrication points may also be included:
Suspension Linkage Pin
Frame Connection Pin
Stabilizer Bar Joint
Structural Hinge Points
In general, an articulated dump truck typically has approximately 17 lubrication points requiring regular lubrication.
For the lubrication needs of heavy equipment, CISOLUBE offers reliable automatic centralized lubrication system solutions.

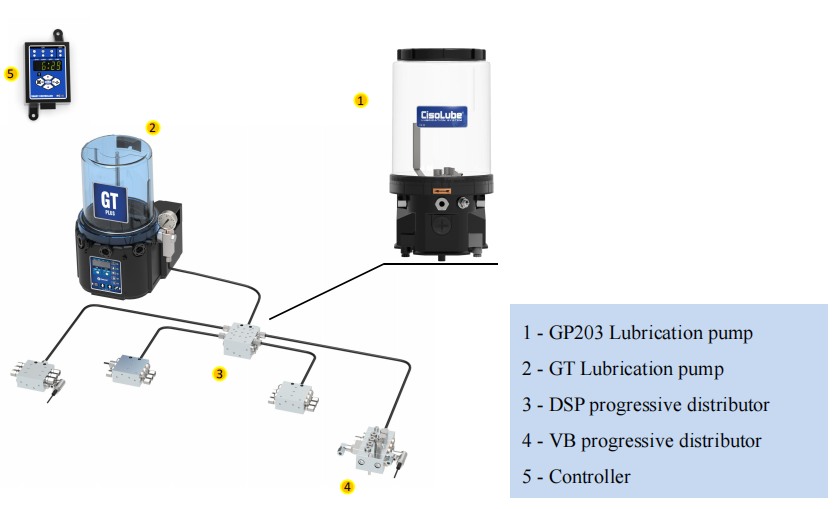

1. GT or GP203 electric lubrication pump
2. DSP or DSPP progressive distributor
3. High-pressure lubrication lines
4. Controller and monitoring system
This configuration belongs to the progressive lubrication system, widely used in:
Construction machinery
Mining equipment
Heavy vehicles
Agricultural machinery and equipment
The lubrication pump is the power core of the automatic lubrication system.
The CISOLUBE GT series electric lubrication pumps and GP203 electric lubrication pumps are designed specifically for heavy equipment.
Key Features
1. High-pressure grease output
2. Automatic lubrication cycle control
3. Compatible with NLGI 0–2 grease
4. Compact design and easy installation
5. Suitable for high-vibration and dusty environments
For articulated dump trucks with 17 lubrication points, both the GT and GP203 provide a stable and reliable grease supply.
The CISOLUBE DSP progressive distributor and DSPP progressive distributor are used to precisely distribute grease to each lubrication point.
Working Principle
When grease enters the distributor:
1. The internal piston moves sequentially
2. Each outlet dispenses a measured amount of grease
3. Each lubrication point receives lubrication in sequence.
Technical Advantages
1. Precise grease metering
2. Expandable to multiple lubrication points
3. Robust design suitable for heavy-duty equipment
4. High reliability even in harsh environments
By combining multiple distributors, the system can easily cover 17 or more lubrication points.
The system operates as follows:
1. The controller starts the lubrication pump.
2. Grease is delivered to the main oil supply line.
3. Grease enters the DSP/DSPP progressive distributor.
4. The distributor sequentially supplies grease to each lubrication point.
5. The system automatically stops at the end of the lubrication cycle.
6. The system can automatically operate according to the set lubrication time intervals, ensuring continuous and reliable lubrication of the equipment during operation.
Installing the CISOLUBE automatic lubrication system on articulated dump trucks offers several advantages:
1. Reduced equipment wear.
2. Continuous lubrication reduces friction and extends the life of pins, bushings, and bearings.
3. Reduced maintenance costs.
4. Automatic lubrication reduces manual greasing and grease waste.
5. Improved equipment reliability.
6. Critical components are always well lubricated.
7. Increased production efficiency.
8. Reduced downtime for manual maintenance, increasing equipment utilization.
9. Extended equipment lifespan.
10. Significantly reduced wear on structural connections.
For articulated dump trucks operating in mining and engineering environments, installing a reliable automated centralized lubrication system has become an essential part of equipment maintenance.
By using the CISOLUBE GT or GP203 lubrication pump in conjunction with the DSP or DSPP progressive distributor, precise and reliable lubrication can be provided to approximately 17 critical lubrication points, significantly reducing maintenance costs and improving equipment performance.
1. What is an automated lubrication system for articulated dump trucks?
An automated lubrication system is a centralized lubrication solution that automatically supplies grease to multiple lubrication points via a lubrication pump and distributor, thereby reducing wear and improving equipment reliability.
2. How many lubrication points are typically found on an articulated dump truck?
Most articulated dump trucks require lubrication of approximately 17 critical lubrication points, including:
Steering cylinder pin
Central articulation pin
Bed lifting pin
Suspension connection points, etc.
3. Which types of equipment use automated lubrication systems? Automatic lubrication systems are widely used in:
Construction machinery
Mining equipment
Excavators
Wheel loaders
Articulated dump trucks
Agricultural machinery and equipment
4. Why choose a progressive lubrication system?
Progressive lubrication systems ensure that each lubrication point receives grease sequentially and can quickly detect blockages, making them widely used in heavy equipment lubrication.
5. Why choose a CISOLUBE lubrication system?
CISOLUBE lubrication systems feature:
High reliability
Precise metering lubrication
Robust and durable construction
Ideally suited for lubricating mining equipment and heavy machinery operating under harsh conditions.
