Lubrication Pumps

• Oil and grease

• Multiple grease filling ways

• Powerful centralized grease lubrication system

• CE Certification

• Design patent

• With special materials, to achieve excellent anti-shock ability

• Special design of pump make it easy to observe the oil level and prevent oil deterioration. With low liquid level alarm, flashing buzzer. Also can choose the type of output

Impermeability of the system and the container fill level must be checked at regular intervals. A fault occurs if the circulation control has not responded within the monitoring time.

Reasons:

a) Container or barrel empty.

b) Pump not ventilated or defective.

c) System blocks at high pump pressure.

• Lubrication line closed

• Lubrication point or its channel closed

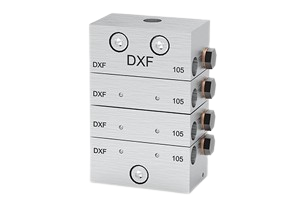

• Outlet on the progressive distributor closed

Unauthorised

• Piston in the progressive distributor fits tightly (bracing, contamination)

• Channel within the progressive distributor closed due to contamination.

• All pistons of a progressive distributor are at centre position.

In case the system is blocked, fault may occur at any location in the system. There is overpressure at the blocked location, which is signalled to the relevant pressure indicator by a protruding pin. Source of fault can thus be localised on a secondary distributor
