WP-C Electric Change-Over Valve

WP-C Electric change-over valve is an integrated detention control device which uses a large torque. DC deceleration motor to drive the valve sliding core to move in order to open and close the oil supply pipeline or change the direction of oil supply. It is suitable for two-position two-way, two-position three-way and two-position four-way directional valves in the main pipeline of the lubrication system and hydraulic system with nominal pressure below 40Mpa.


Technical Information of WP-C Electric Change-Over Valve


Part number

Pressure

Voltage

Power

Reversing time

Weight

Applicable mediumLubrication systems

24EJF46

40Mpa

AC220

40W

0.5s

13KG

220-385 (25℃, 150g) 1/10mm of grease (NLGI 0 # -3 #) and lubricating oil greater than N68

dual line lubrication systems

24EJF424

DC24

11KG

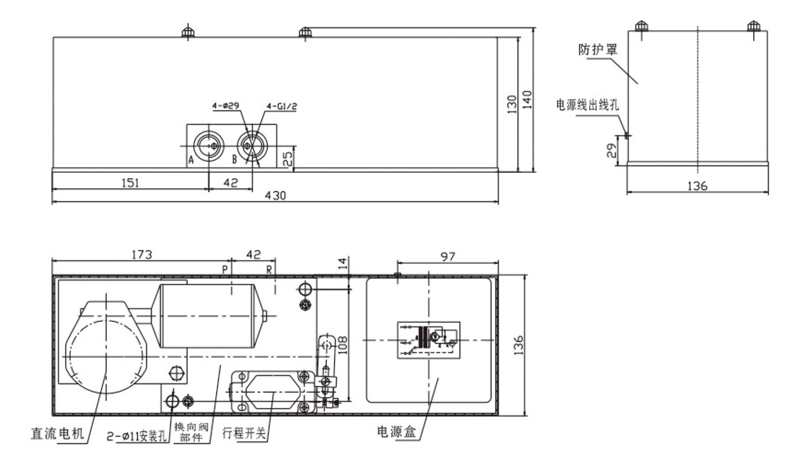

Technical Drawing of WP-C Electric Change-Over Valve

Technical Drawing of WP-C Electric Change-Over Valve

Part numberPressureVoltagePowerReversing timeWeightApplicable medium
24EJF4640MpaAC22040W0.5s13KG220-385 (25"C, 150g) 1 / 10mm of grease (NLGI 0 # -3 #) and lubricating oil greater than N68
24EJF424DC2411KG
