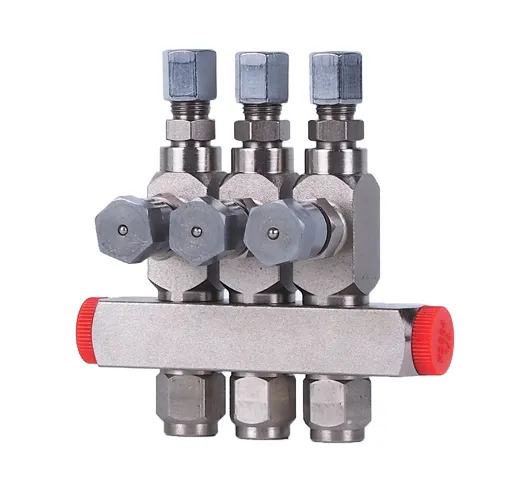

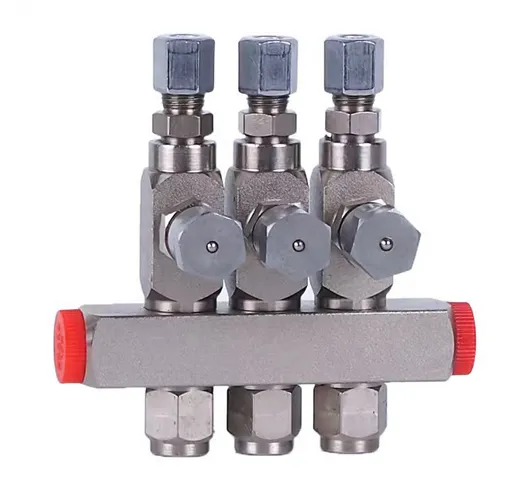

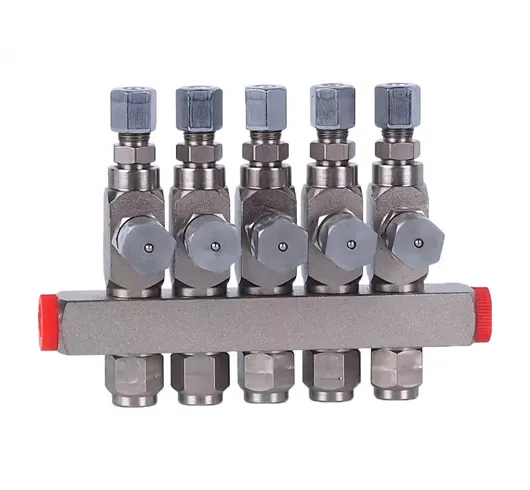

VL-32 Metering Valves

VL-32 injector has been designed to deliver lubricant to friction points through the feeding line pressure.

These injectors are supplied with visual in-built level indicators to monitor the operation.

VL-32 injector is available in different models: from one to four outlets. Every injector mounted on a manifold can be easily replaced or inspected without disassembling the unit or operating on fittings and tubings.

These units can be installed in any position and can be used with other types of injectors, if necessary.

Technical Information of VL-32 Metering Valves


TECHNICAL CHARACTERISTICS

Outlets

1 to 4

Metering quantity

0,016 to 0,131 ml

Lubricant

grease NLGI 0, 1, 2

Operating temperature

max. +93 °C; +200 °F

Operating pressure

8.3 to 24 Mpa

Material

carbon steel

Connection main line

1/8 NPT(F)

Connection outlet

1/8 in O.D. tube

Lubrication systemsingle line lubrication system




Characteristics of VL-32 Metering Valves


  • Shipped with manifolds from 1 to 4 ports to match number of lube points

  • Output is externally adjustable

  • Indicator stem permits visual check of operation

  • Can be removed easily for inspection or replacement


Cisolube offers custom grease distributor with wide selections, Contact now.
