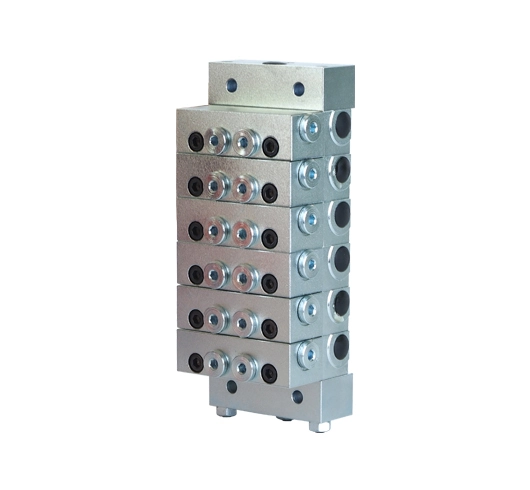

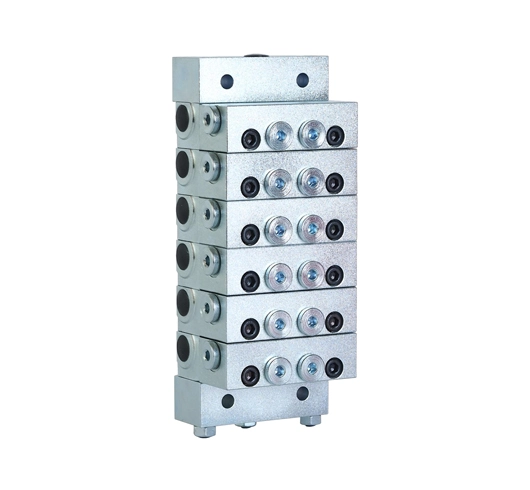

VSP Distributor Valve

VSP modular distributor valve can ensure accurate lubrication, and is suitable for all kinds of harsh conditions, is a perfect lubricant distributor solution.

The divider consists of two main parts:

  • THE BASE (consisting of a minimum of three elements)

  • THE METERING VALVES (available with both a single outlet as well as a double one)

To maximize the performance of the plant, it is crucial to use electrical monitoring elements that detect malfunctioning or system blockage.

Thanks to its modularity, the system can be easily expanded and replacement of metering elements can occur without removing the pipework, thereby guaranteeing low maintenance costs. The modularity of the dividers furthermore allows you to bundle lubrication points according to system requirements.

Typical applications: automobile, industrial, equipment, wind power, construction machinery, etc.

Modular overall supply, save assembly time for customers.

Stainless steel is available.

Technical Information of VSP Distributor Valve


Max. Pressure:

25Mpa

Standard displacement

0.08--1.3ml/cyc

Lubricant

Oil 32 CST—  NLGI 2

operating ambient temperature

30℃--+150℃

Maximum cycle speed with cycle indicator

60cyc/min

Number of lubricating points available

3--22 point

Lubrication systemprogressive lubrication system

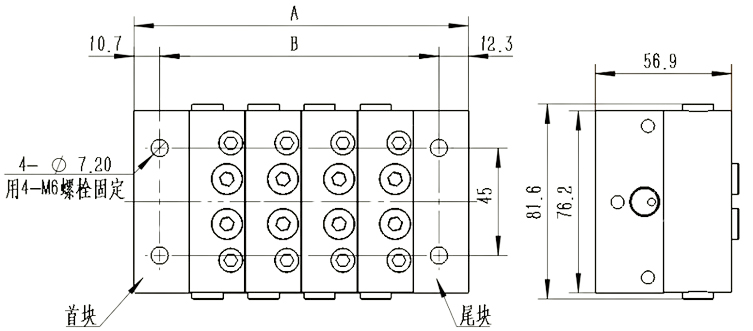

Technical Drawing of VSP Distributor Valve

Technical Drawing of VSP Distributor Valve



Number of workA(mm)B(mm)Number of workA(mm)B(mm)
3116.891.46188160
4127114.37210.8185.4
5162.6137.28223.7208.3


Note: A and B in the above table are theoretical values, which may have errors with real objects due to the influence of cumulative assembly errors of distributors.

Characteristics of VSP Distributor Valve


  • Three kinds of thread are available: R, NPT, BSPP

  • Nickel-plated steel

  • Oil-NLGI 2

  • FKM O RING

  • CE certification


Cisolube offers custom grease distributor with wide selections, Contact now.
