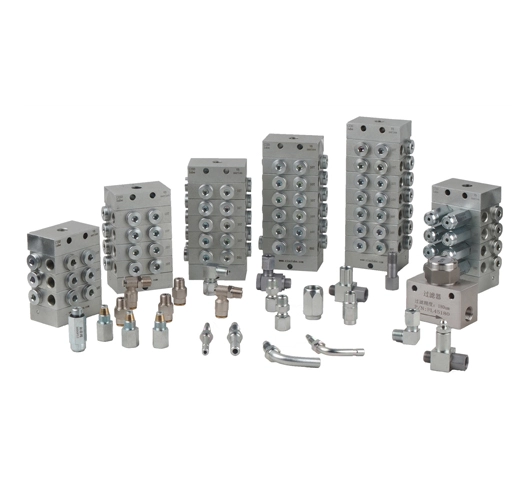

VB Distributor Valve

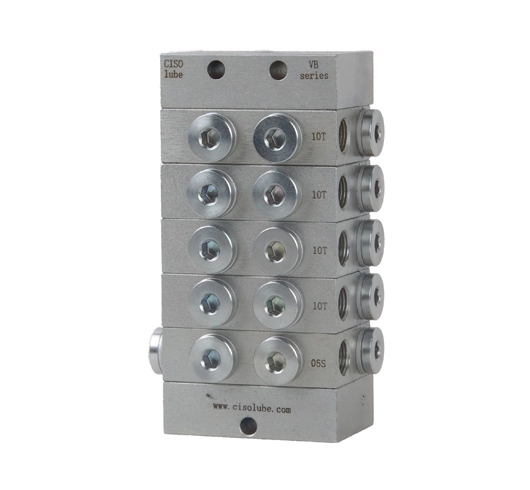

A typical VB distributor valve consists of a "first piece", a "tail piece" and 3 to 10 working pieces. Can provide 3 to 20 lubrication points of lubrication, VB distributor valve working piece, a variety of specifications of displacement for selection. The double outlet working piece (after the specification value of the working piece,  the T represents the double outlet) has two oil outlets, which can be set as the side or upper output; the single outlet (after the specification value of the working piece, the S represents the single outlet) has one oil outlet, which can be at either end of the working piece, and the other end needs to be blocked. Note: that the double outlet working piece should not block any outlet, otherwise it will affect the normal operation.

Magnetic and electronic proximity switch cycle indicators can be easily configured to provide positive protection for successful lubrication.

Technical Information of VB Distributor Valve


Operating pressure

Max 250 bar

Lubricants

Oil  46 cSt to Grease NLGI-2

Operating temperature

-40 °C to 110 °C

Inlet port

R1/8

Outlet port

M10x1

Outlets

MAX 20

Max inlet

Max 280cyc/min

Coating

Zinc-Nickel plated

Lubrication systemprogressive lubrication system

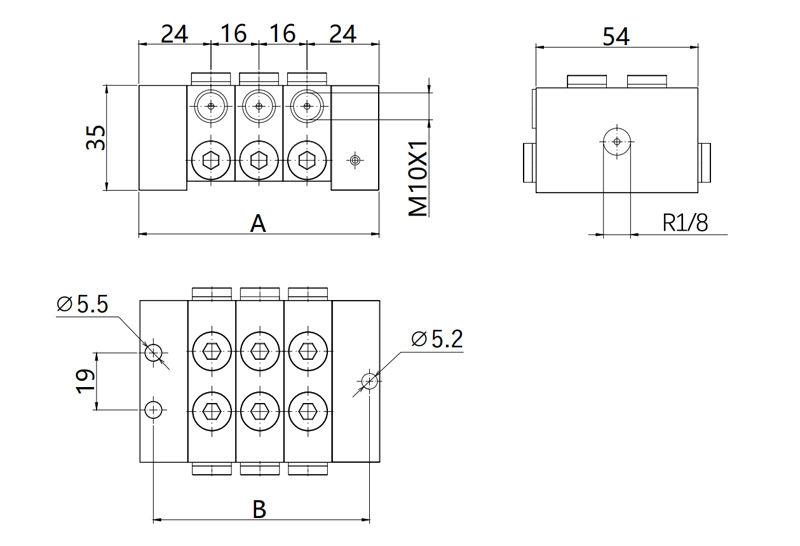

Technical Drawing of VB Distributor Valve

Technical Information of VB Distributor Valve


Number of workA(mm)B(mm)
38072
49688
5112104
6128120
7144136
8160152
9176168
10192184


Cisolube offers custom grease distributor with wide selections, Contact now.
