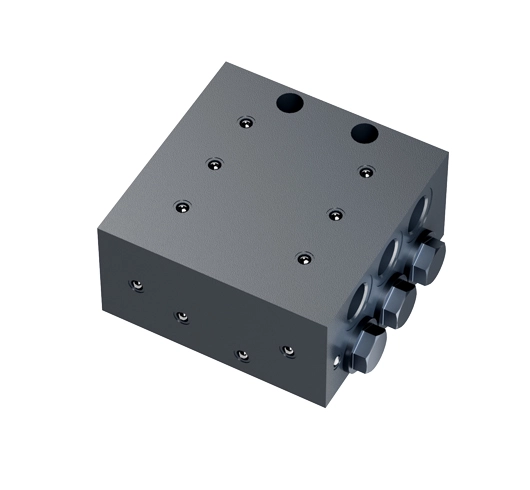

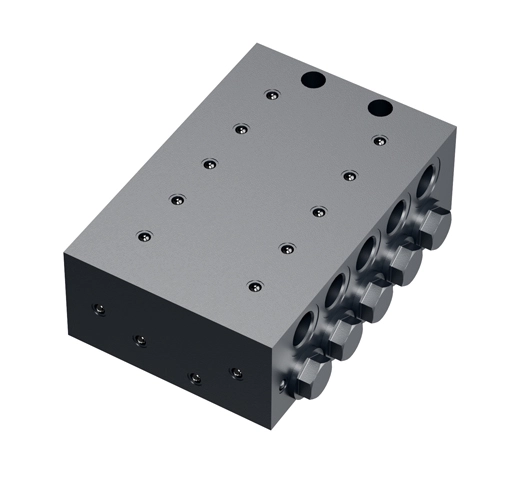

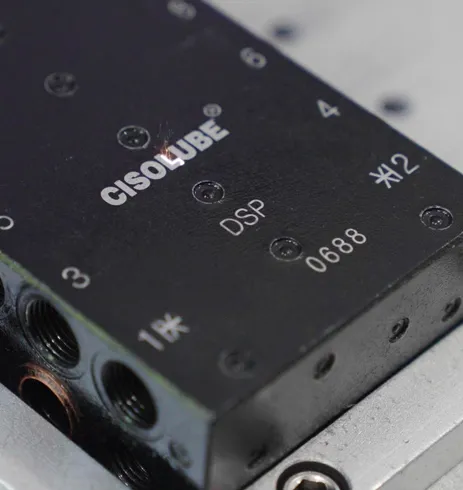

DSP Distributor Valve

The DSP is a single block progressive divider valve that is ideal for applications where space is limited.

It is available in 6,8,10,12,14,16,18,20 and 22 outlet versions, each with an output of 0.2 cm³ inch per cycle.

The single output of the dosing device may be combined with the one located adjacent by eliminating the special fitting and applying a plug.

An outlet can also be merged with the sequential outlet on the block by removing the special outlet fitting and installing a plug.

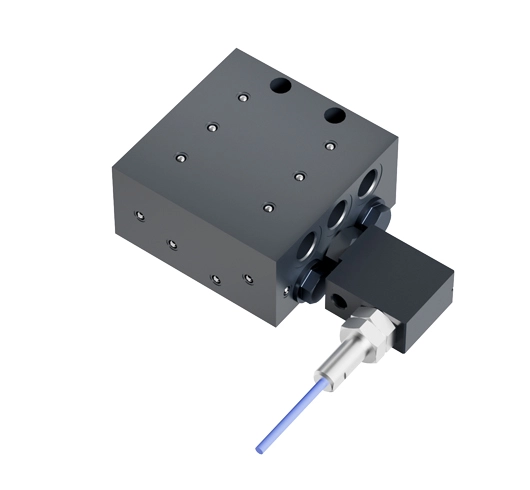

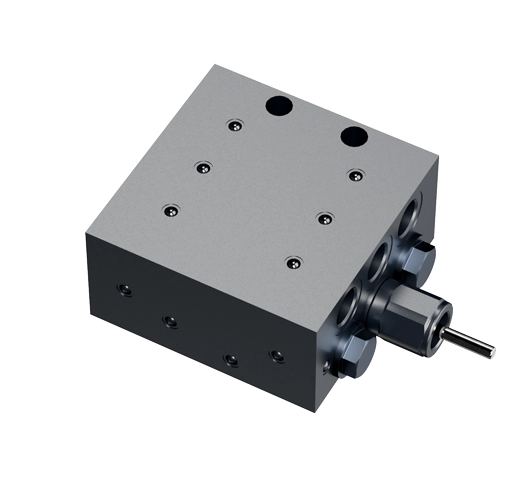

Visual or electronic monitoring can be achieved simply by removing a plug and installing a visual or electronic add-on device as shown below. The spools in a progressive metering valve operate sequentially partitioning equally across the outlets, the grease being pumped into the metering block inlet.

In the event of a blocked lubrication point all the spools will stop, thereby allowing the user to monitor the entire system with a single monitoring device.

The grease pumped inside of the block is distributed by the piston dispensers of the progressive dosing device equally among the different outputs. In case a single output becomes blocked, the pistons stop their activity allowing for the control of the entire system by means of a single device for this purpose.


Technical Information of DSP Distributor Valve


Operating pressure

From 20 to 350 Bar

Lubricants

Oil 46 cSt to NLGI-2#

Operating temperature

-40 °C to 200 °C

Discharge (for outlet)

0.2ml/cyc

Inlet port

G1/8

Outlet port

M10x1

Outlets

From 6 to 22

Piston cycles

Max 200 cyc/min

Lubrication systemprogressive lubrication system

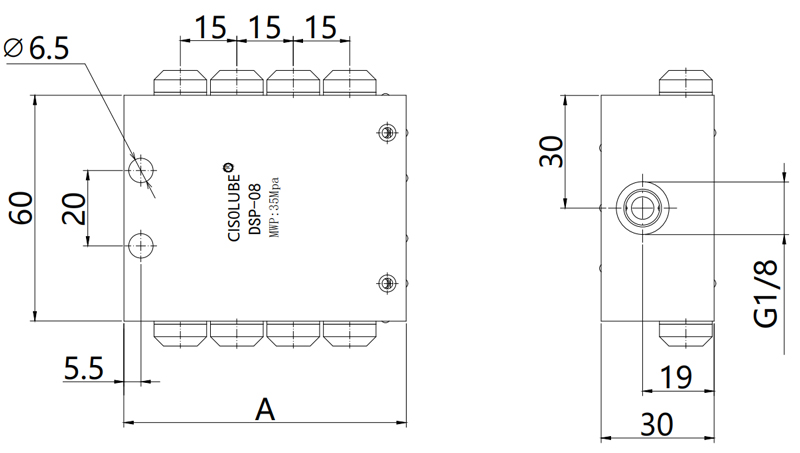

Technical Drawing of DSP Distributor Valve

Technical Drawing of DSP Distributor Valve

OutletsA/mm
660
875
1090
12105
14120
16135
18150
20165
22180


Characteristics of DSP Distributor Valve


  • Pump oil and grease

  • Min. Pressure: 20 Bar, 300 psi

  • Max. Pressure: 350 Bar, 5075 psi

  • Operating Temperature:

  • 40 ~ +200 ºC

  • Lubricant viscosity: Oil- NLGI 2

  • Material:  nickel-plated steel

  • Proximity Type: PNP or NPN 10-30V DC-200 mA
