Automatic Lubrication System for Rotary Blast Hole Drill Rigs

I. Overview of Automatic Lubrication System for Rotary Drill Rigs

Rotary blast hole drill rigs are widely used in mining, tunneling, and energy industries. These machines operate under extremely harsh working conditions, including high dust levels, heavy vibration, and continuous high-load operation.

An automatic lubrication system (centralized lubrication system) ensures continuous and precise lubrication of all critical components, significantly improving equipment reliability and reducing maintenance costs.

II. Lubrication Point Analysis of Rotary Blast Hole Drill Rigs

1. Main Lubrication Points

• Typical rotary drill rigs include the following lubrication points:

• Rotation mechanism (slewing bearing, gears)

• Feed system (guide rails, sliding components)

• Drill rod connection points

• Bearing systems (main shaft bearings, rolling bearings)

• Chains and transmission components

• Hydraulic auxiliary lubrication points

Typical number of lubrication points: 15–30 (depending on model configuration)

2. Problems with Manual Lubrication

•  Uneven lubrication and missed lubrication points

• Over-lubrication or under-lubrication causing wear or waste

• Safety risks due to high-position lubrication points

• Dust contamination affecting grease quality

• Frequent downtime and high maintenance cost

Conclusion: Manual lubrication cannot meet the requirements of modern mining equipment.

III. Automatic Lubrication System Configuration for Drill Rigs

1. Recommended System Types

For harsh mining environments, the following systems are recommended:

• Centralized lubrication system

• Single-line  lubrication system

2. System Components

A typical configuration includes:

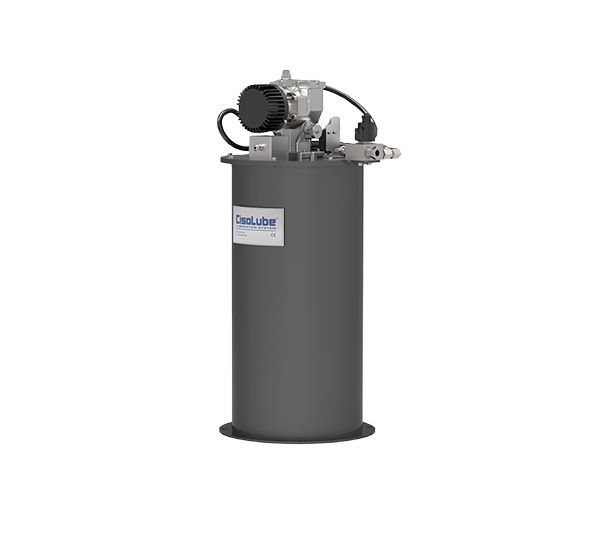

• Lubestar electric grease pump

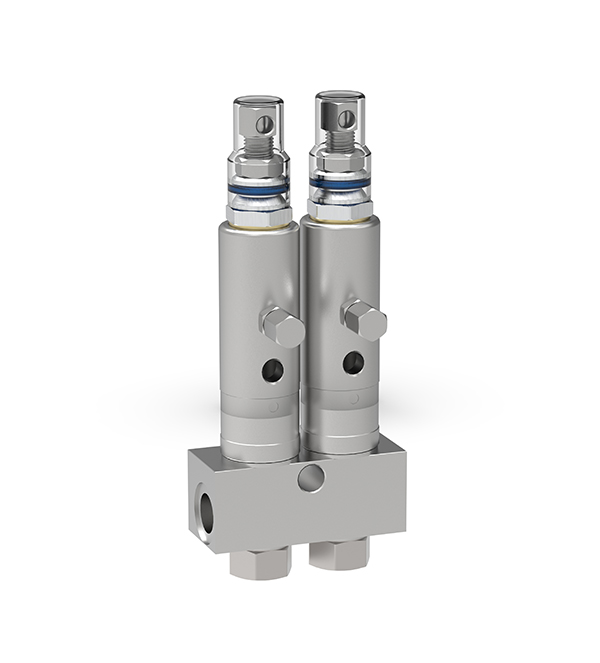

• VL-1 single-line progressive distributor

• Main lubrication lines + branch tubing system

• Controller (timer or PLC-based control system)

This configuration provides a stable and efficient automatic grease lubrication system solution for mining drill rigs.

IV. Advantages of Lubestar Electric Grease Pump

1. Key Performance Features

•  Brushless DC motor drive

  oHigh efficiency, stable output, long service life

• Multiple reservoir capacity options

  oSuitable for different drill rig models

• Stable pressure output

  oReliable operation under high vibration conditions

• IP65 protection rating

  Dustproof and waterproof for mining environments

•  Heavy-duty structural design

• High durability and extended service life

V. VL-1 Single-Line  Distributor

1. Product Advantages

• Independent metered output for each lubrication point

•  Easy fault detection (blockage monitoring capability)

• Expandable multi-point configuration

• Stable and reliable grease distribution

The system is ideal for multi-point distributed lubrication applications such as rotary drill rigs.

VI. Working Principle of the Automatic Lubrication System

System operation process:

• Controller activates lubrication pump based on preset time interval

• Grease is delivered through the main line

• VL-1 distributors sequentially distribute grease

• Each lubrication point receives a metered amount of grease

• System stops after completing one cycle

Result:

Unmanned operation + precise automatic lubrication

VII. System Architecture Design

1. Typical System Structure

Lubrication pump → Main pipeline → VL-1 distributor group → Lubrication points

2. Design Recommendations

• Use 1–3 distributor groups depending on number of lubrication points

• Adjustable grease output per lubrication point

• Optimize pipeline layout to reduce pressure loss

• Proper installation layout for easy maintenance access

VIII. Operation and Maintenance Guidelines

1. Grease Selection

• High-adhesion grease recommended

• Strong water resistance required

• Recommended NLGI Grade 1 or 2

• Suitable for heavy-duty mining applications

2. Daily Inspection Checklist

• Check lubrication pump operating status

• Inspect tubing for leakage or damage

•  Verify distributor operation

• Confirm grease output at all lubrication points

3. Common Issue Prevention

• Prevent dust ingress; regularly clean connectors

• Prevent blockage; install filtration systems

• Use low-temperature grease in cold environments

• Maintenance Schedule

1）Weekly: system operation check

2）Monthly: pipeline and distributor inspection

3）Quarterly: grease replenishment or replacement

IX. Advantages of Automatic Lubrication Systems for Mining Drill Rigs

1.Reduced equipment failure rate

2.Extended service life of key components

3.Lower maintenance and labor costs

4.Increased machine uptime

5.Improved overall production efficiency
