Dual Line Lubrication System for Flotation Machines

In mineral processing, flotation machines are at the heart of the separation process—but they also represent one of the most demanding lubrication environments in the entire mine. Dust, chemical exposure, high moisture, and complex structures with dispersed bearings pose serious challenges to manual and outdated lubrication methods.

The Challenge: Harsh Conditions, High Failure Risk

Traditional lubrication methods cannot guarantee precise, even grease delivery under such harsh conditions. Over- or under-lubrication leads to premature wear, bearing failure, and costly unplanned downtime.

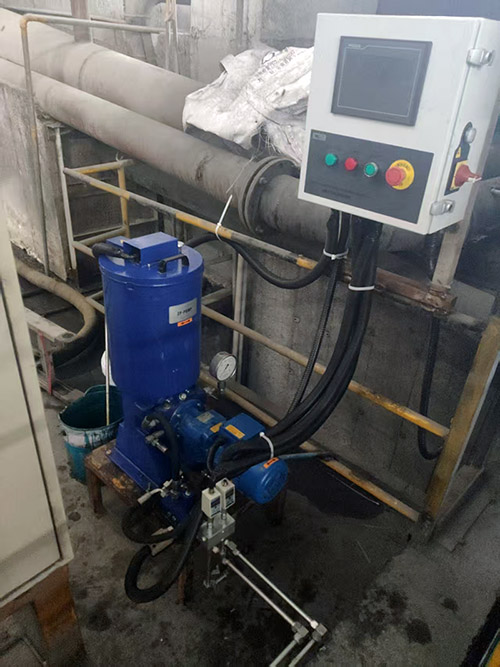

Our Solution: Dual-Line Lubrication System with ZP08/14/24 Dual-Line Lubrication Pump &  Dual-Line Distributors

The lubrication system company CISOLUBE provides a high-performance Dual-Line Lubrication System engineered to handle the extreme demands of flotation equipment. At the core of this solution are:

ZP08/14/24 Dual-Line Lubrication Pump

Heavy-duty electric pump designed for large-scale mining systems.

Operating pressure: Up to 40 MPa (400 bar / 5800 psi)

Flow rate options: 8000 / 14000 / 24000 ml/h

Reservoir capacity: 40L / 60L / 100L

Temperature range: -40°C to +80°C

Lubricant compatibility: NLGI 0# – 2#

With its high-pressure output and optional long-distance feeding, the ZP08/14/24 Dual-Line Lubrication Pump ensures every lubrication point receives metered grease—automatically and reliably.

DSG Dual-Line Distributors

Precision grease distribution blocks for consistent, fail-safe operation.

Material: Galvanized steel, corrosion-resistant

Operating pressure: Max 400 bar

Outlets: 2 to 8 (each pair with indicator pin for visual monitoring)

Discharge per cycle: 0~2.2ml/cyc（adjustable）

fixed output：0.55、1.1、1.65、2.2ml/cyc

Outlet thread: G1/4; Inlet thread: G3/8

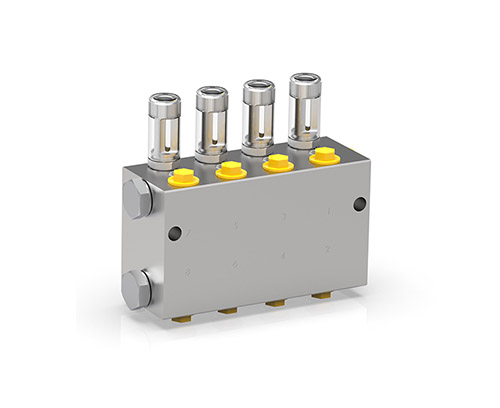

DSG Dual-Line Distributors

The DSG dual-line distributors  is constructed from durable galvanized steel, specifically designed for dual-line centralized lubrication systems. With a maximum operating pressure of 40 MPa (5,800 psi), it supports up to 8 outlets. Each pair of outlets can be equipped with either mechanical indicators or electronic sensors for clear and reliable monitoring.

Key Features and Benefits:

1、Easy and flexible installation;

2、Solid block design enhances durability and reliability;

3、Corrosion- and acid-resistant valve body for extended service life;

4、Operates effectively across a wide temperature range;

5、Simple visual monitoring and control.

The DSG dual-line distributors is ideal for demanding industrial applications where high pressure, corrosion resistance, and precise monitoring are critical.

CISOLUBE’s dual-line lubrication systems have been applied in a variety of mining operations, including flotation machines, crushing equipment, and conveyors. These systems are currently in service at siteshelping to support equipment reliability and reduce manual maintenance in harsh operating conditions.
